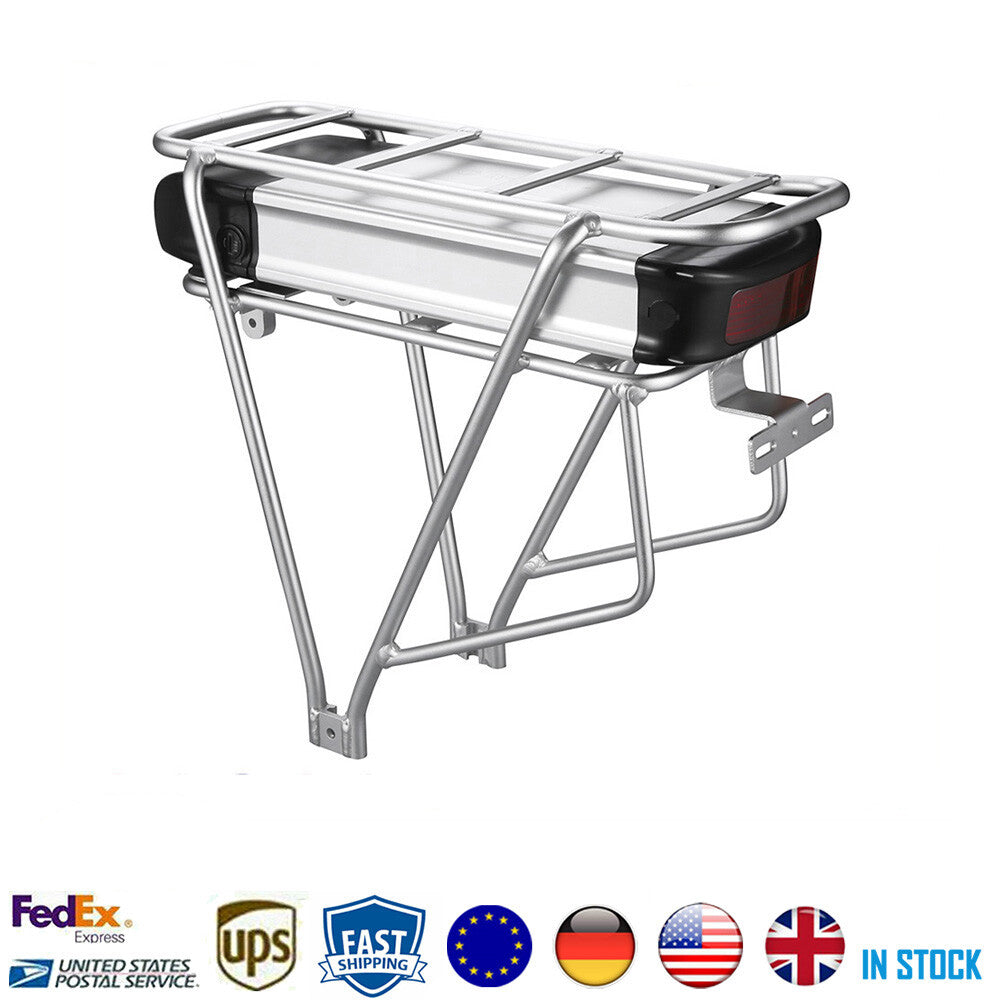

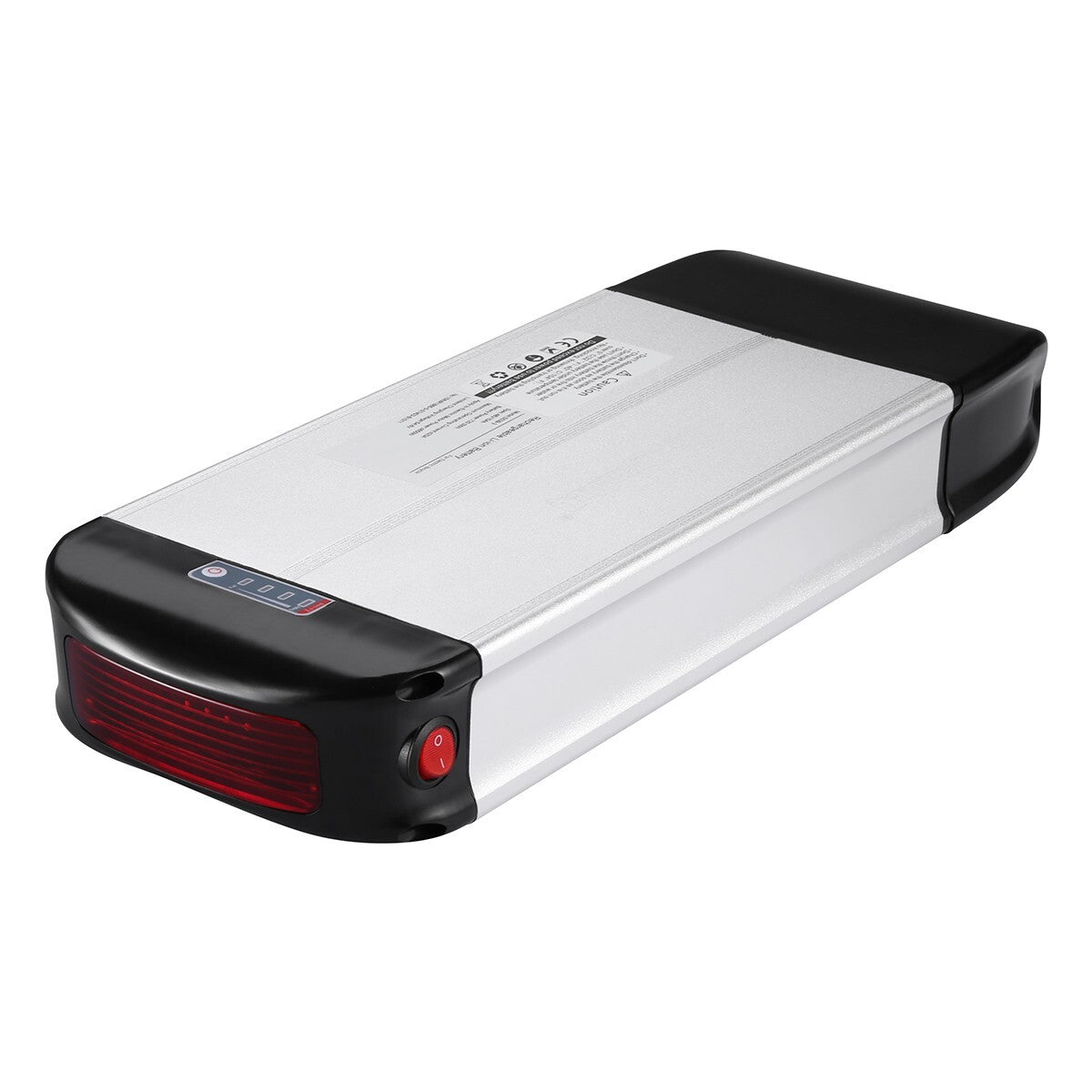

Pacco batteria agli ioni di litio 36V 20Ah portapacchi posteriore per e‑bike

User-friendly Design: The light-weight design makes the battery easy to install and remove. Black hard plastic shell protects the battery effectively and LED battery level indicator can inform you of charging in time.

Safe to Use: Built to the highest standards that has been tested. When the motor is overloaded, the system automatically switches off to protect the technical components against damage. The battery is fully sealed and designed to be using all day long, even on muddy roads.

BMS Protection Board: The high quality battery is equipped with a 30A BMS protective plate, which prevent over charge, over discharge, over current and short circuit and ensure the long life expectancy.

Stable and Durable: The input and output are more stable and its large capacity makes the service life of battery longer.

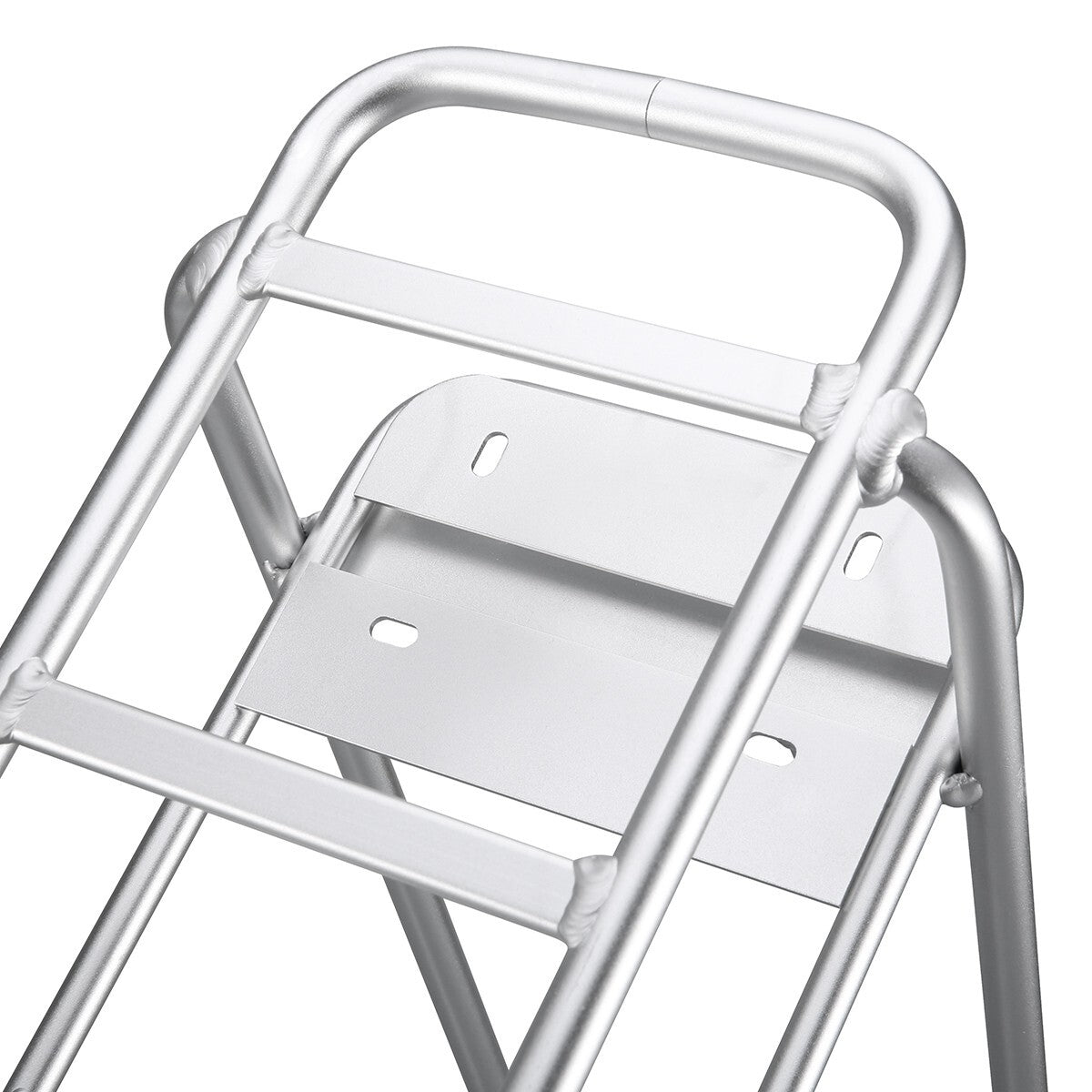

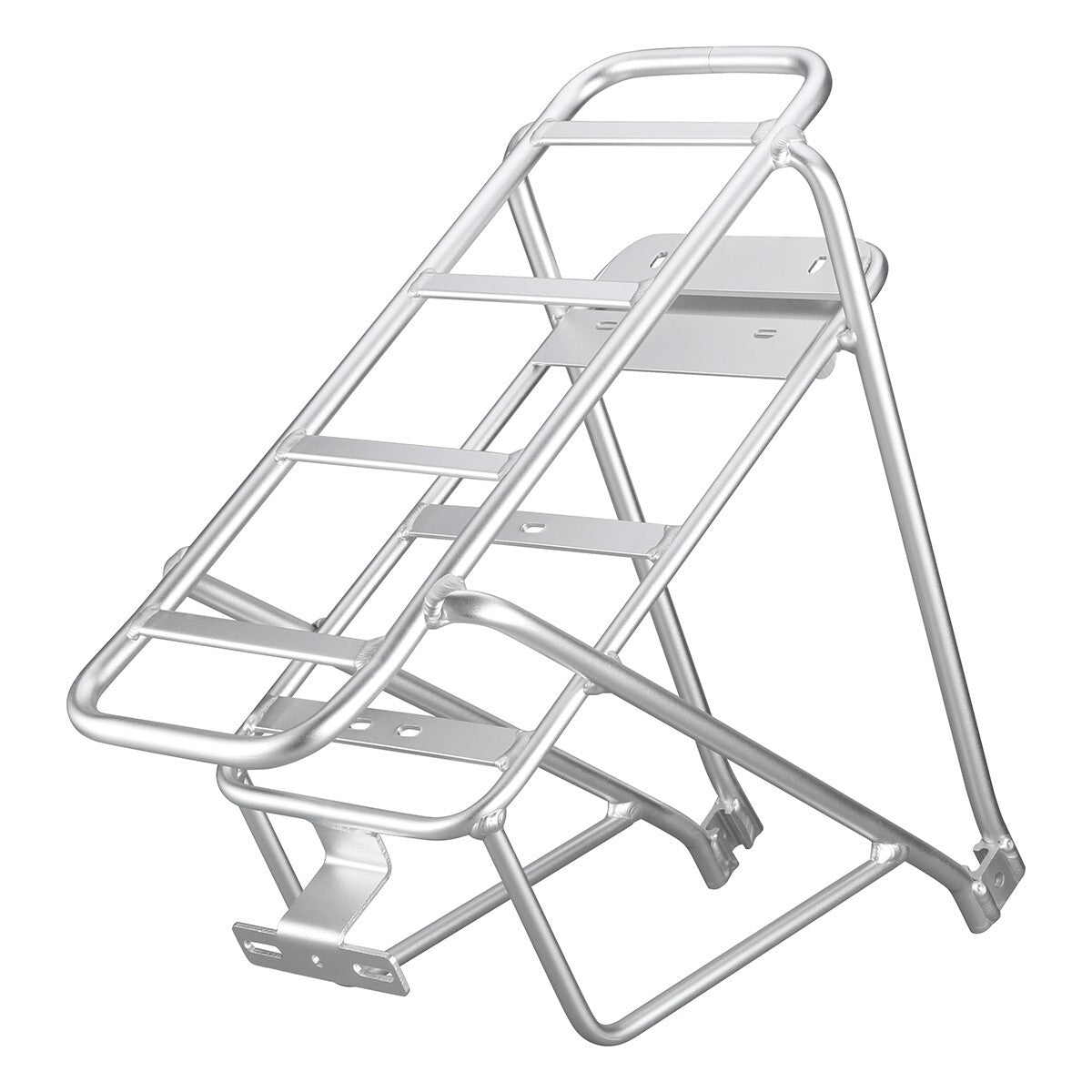

Ergonomic Design and Widely Applicable: The electric bike battery pack has a mounting bracket that will mount to most water bottle screw holes in the frame. Compatible with 36V electric bikes, bicycles, mountain bikes and more.

Model：HA074-04
Rated Voltage： 36V
Rated Capacity： 20Ah
Battery Power： 720Wh
Specification： 10S8P/25Ah
Max Charge Voltage： 46V
Discharge Cut-off Voltage： 27.5V
Max. Charge Current： 5A
Standard Discharge Current5： A
Max. Discharge Current(BMS)： 30A
Over current protection： 120A
Apply to Electric Motor Power： ≤800W
Battery cha*ger： 42V 3A

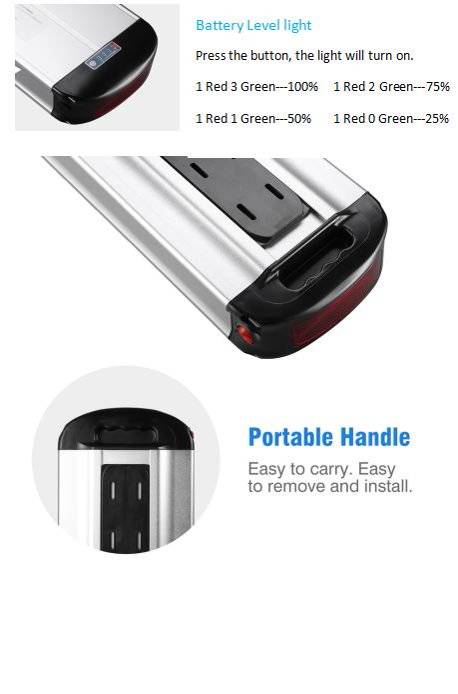

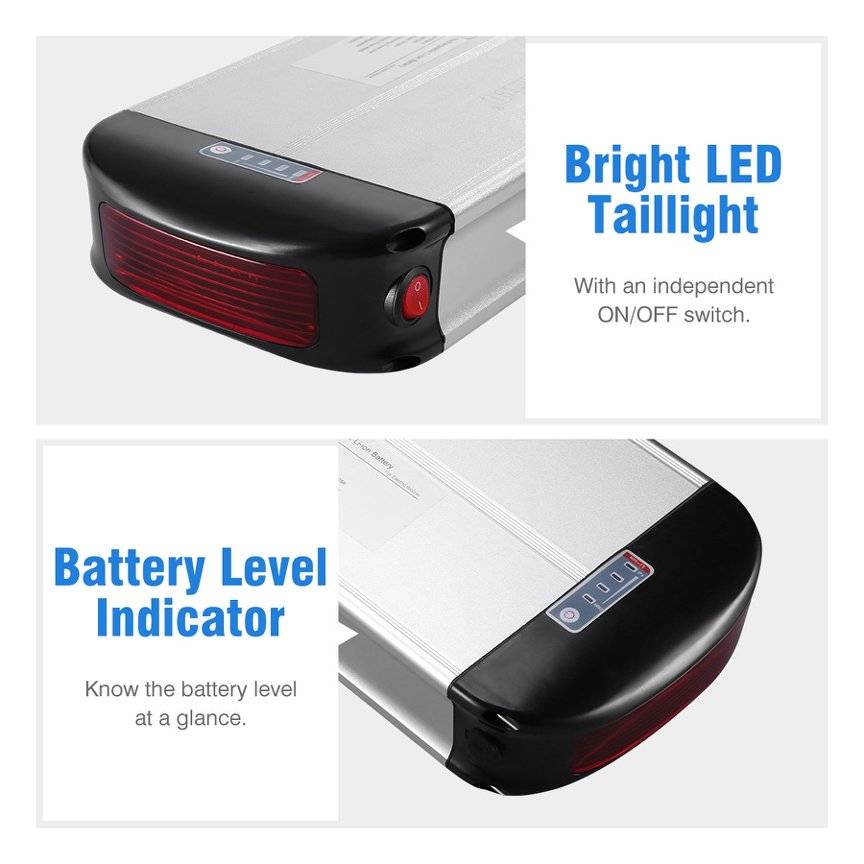

Display of power level： YES
Power switch： YES

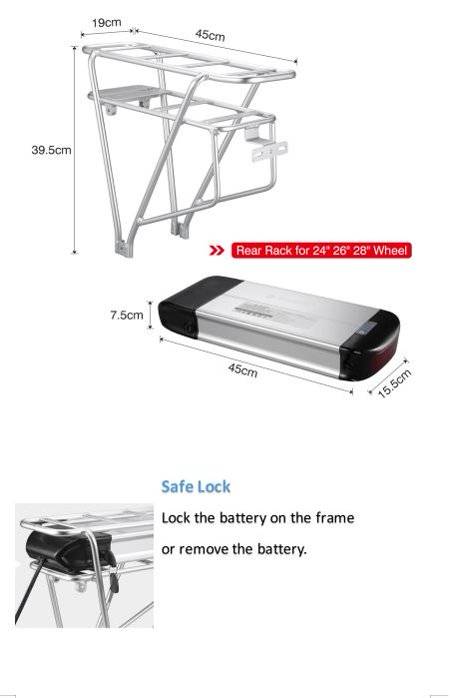

Security lock： YES
Net weight： 5.6kg
Gross weight： 7.8kg

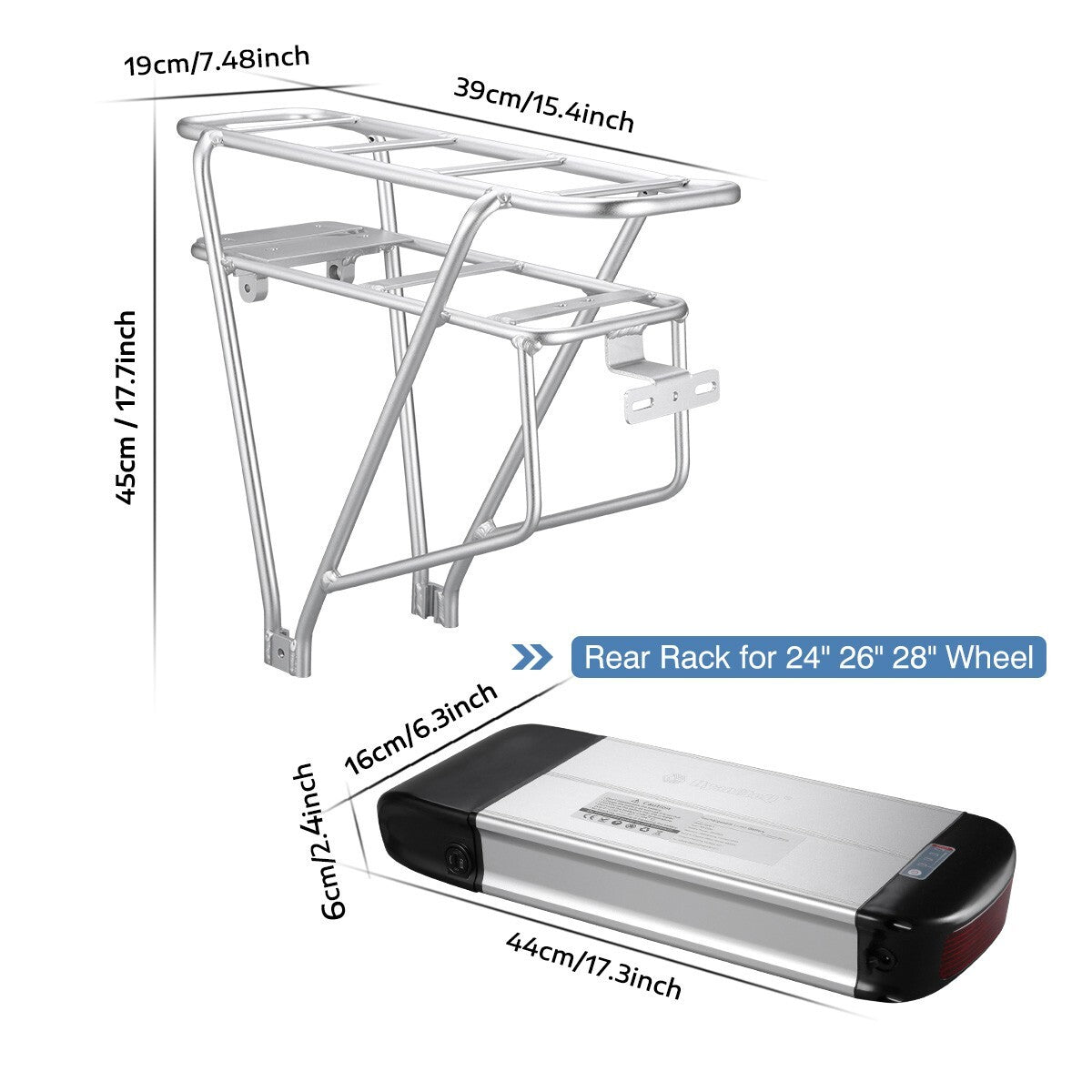

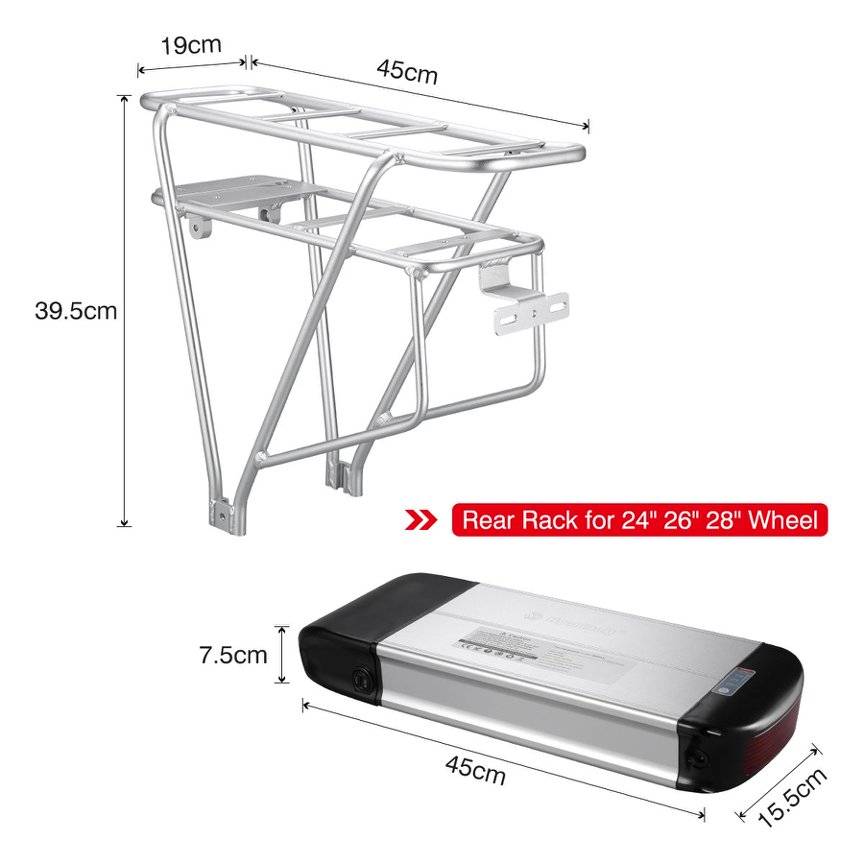

Battery size： 440×160×60mm

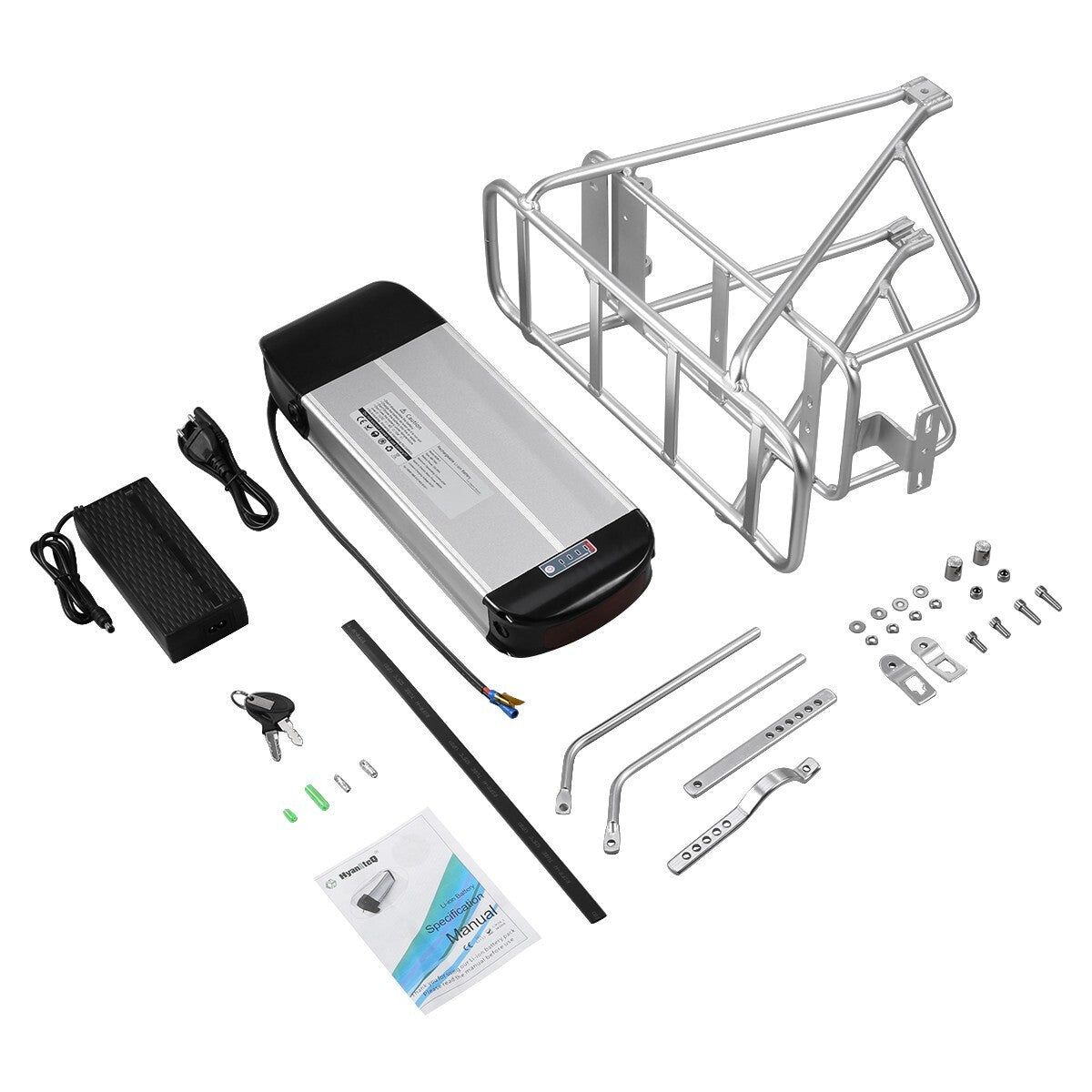

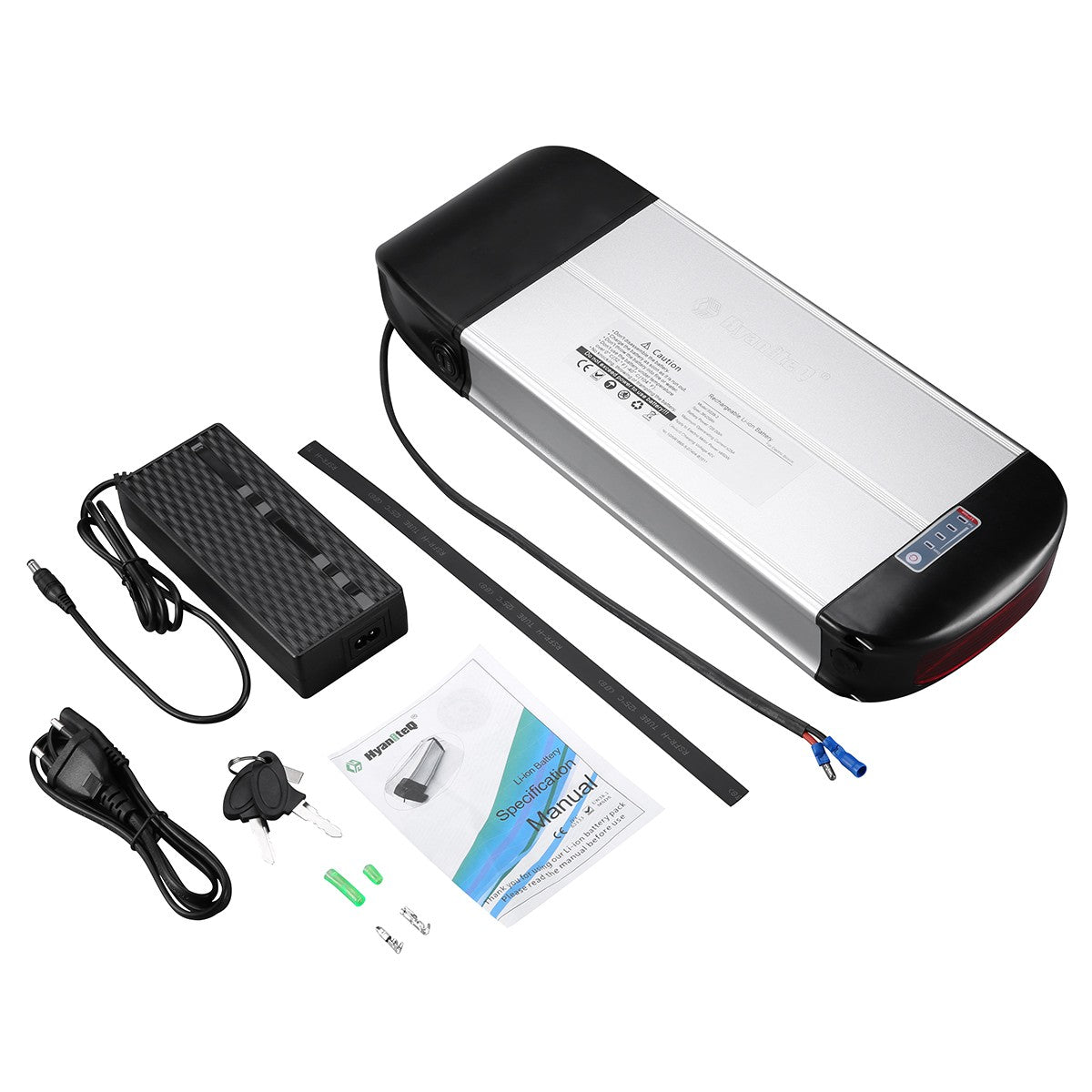

Package Contents:
1* Battery with keys

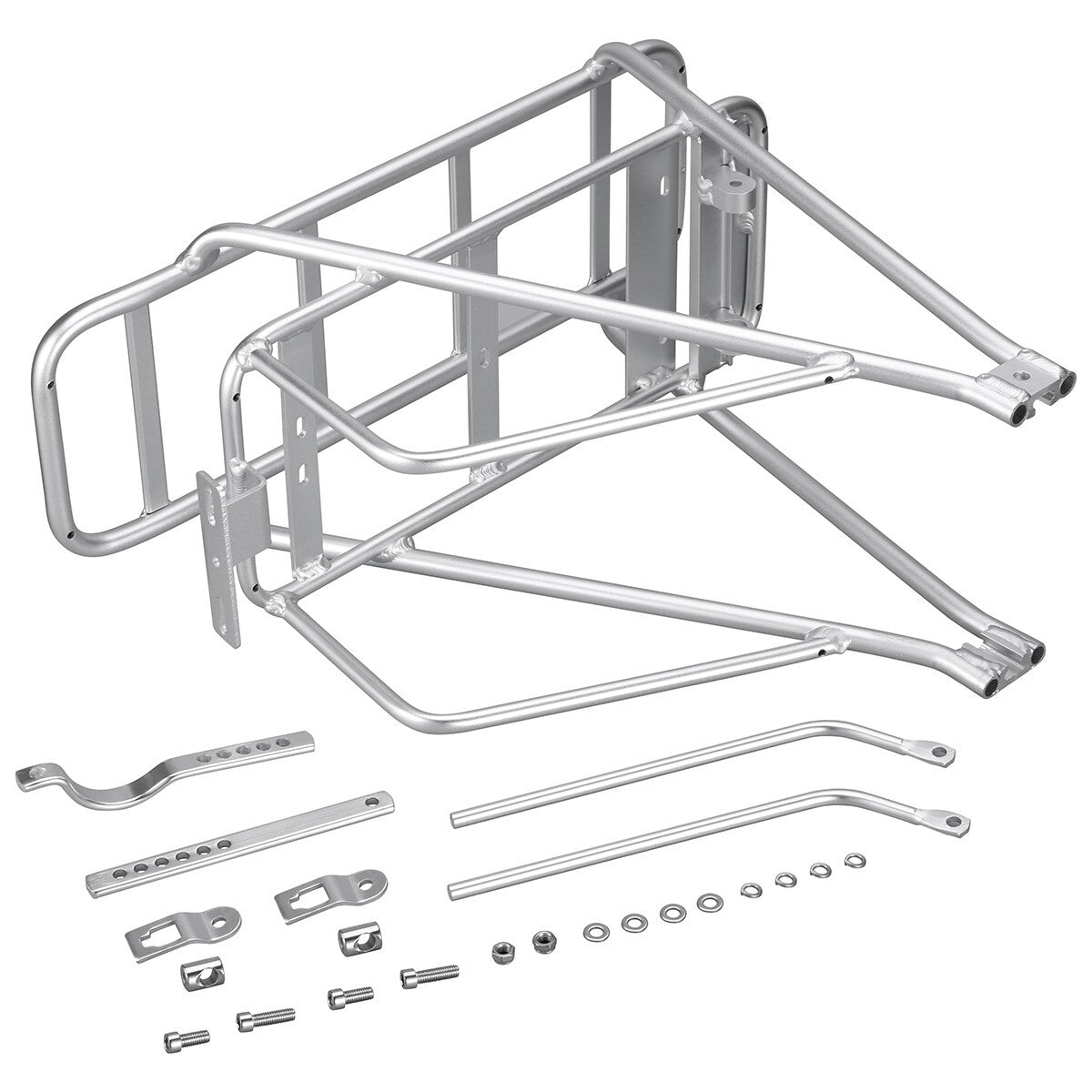

1* Battery install plate and other parts
1* cha*ger
1* User Manual

Packing size490×220×430mm

Operating Temperature:
Charge:0℃ -45℃
Discharge:-20℃ -60℃

Product Function information:

Note:
1.When charging the battery, please use the regular brand cha*ger. The charging time should not exceed 6 hours.
2.It is strictly forbidden to place batteries in water and in fire, so as to avoid getting close to the heat source. It is forbidden to use metal and conductive materials to plug in the charging and discharging interfaces.
3.If you do not use the battery for a long time, please keep the battery power between 40% and 70%, it is recommended that the battery be charged every two months; otherwise, the battery may be damaged, and this irreversible damage is not within the warranty.
4.Please keep these products and accessories properly and keep them away from children.
5.Unauthorized self-repair and modification of parts may cause damage to the product and such man-made damage is not covered by the warranty.
6.Please use this product according to your local laws, regulations and restrictions.

the batteries are certified to UL 2271 standards

PLEASE BE CAREFUL BEFORE ORDERING: .
Our battery fits in most motor kit, but exclude these four: Bosch, SHIMANO, Yamaha, Panasonic. If you can not confirm your engine, please contact us
